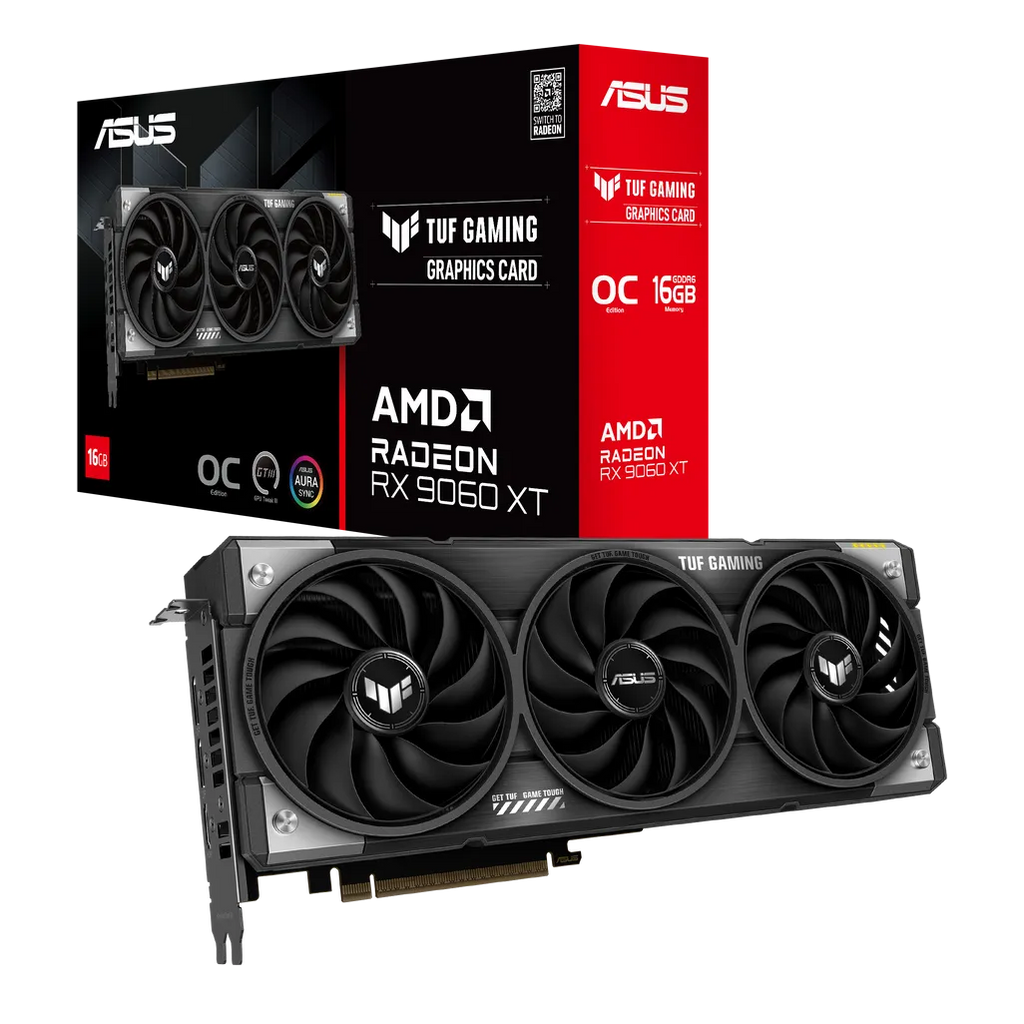

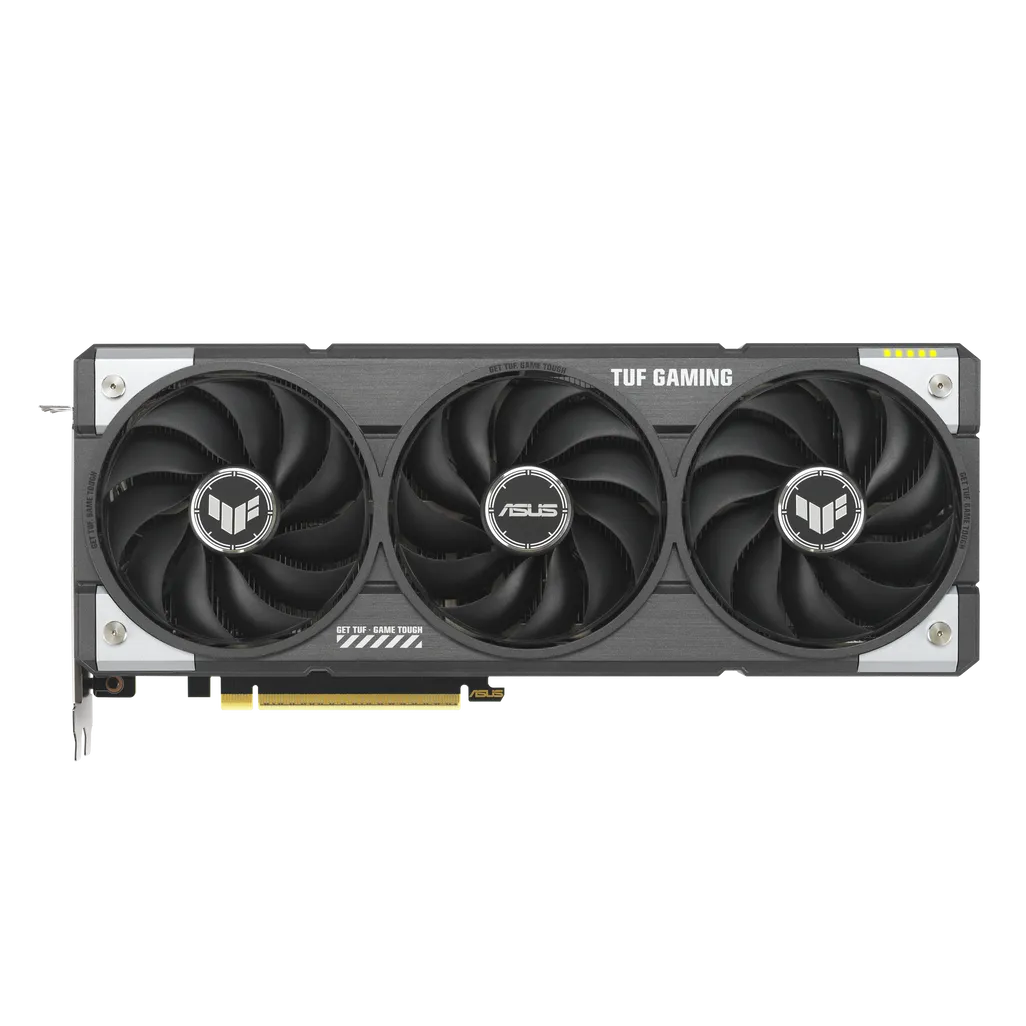

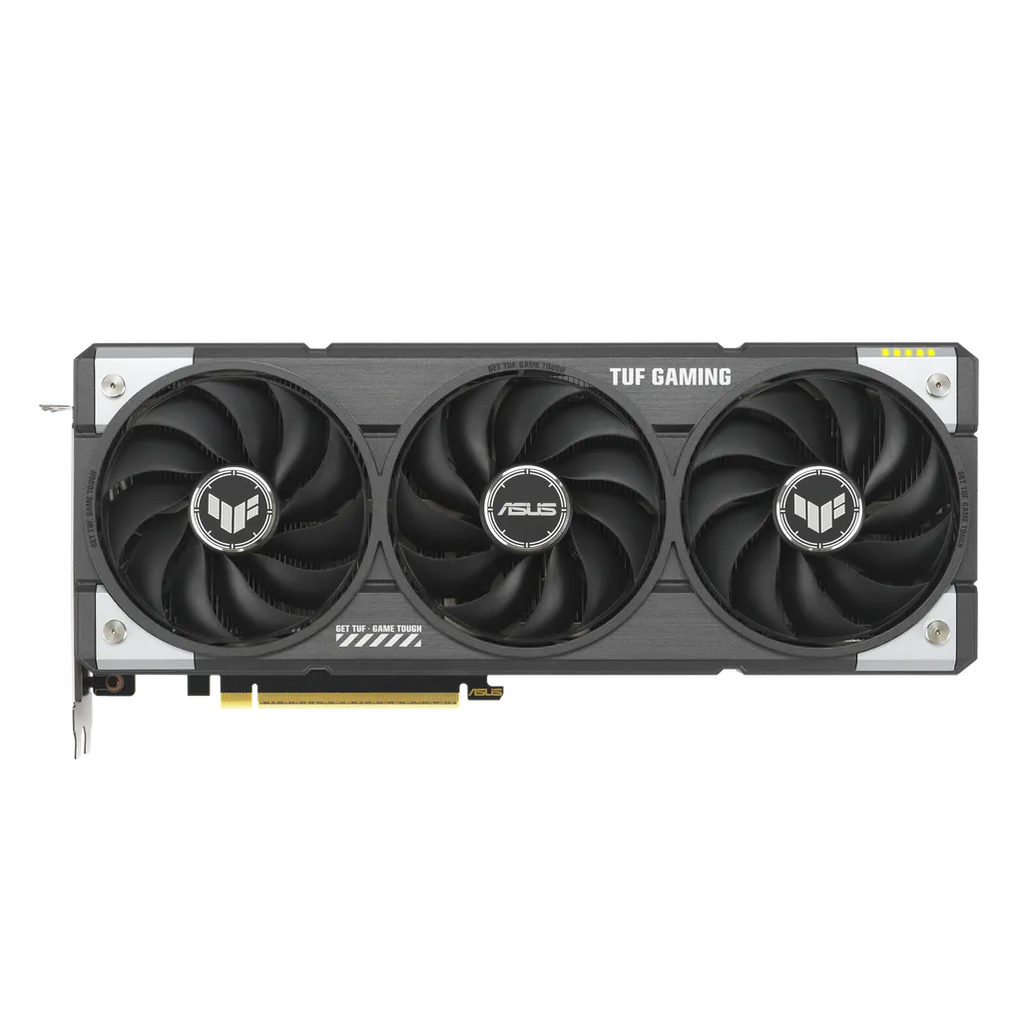

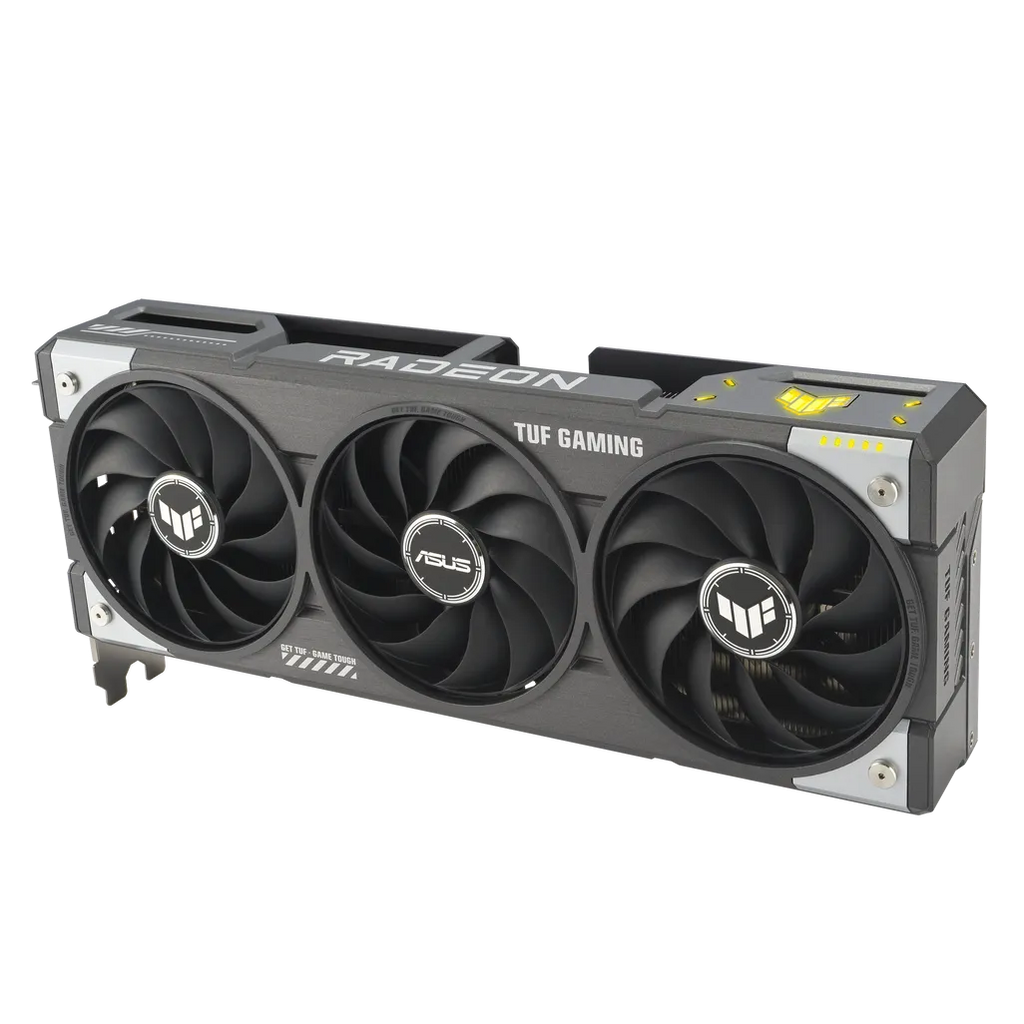

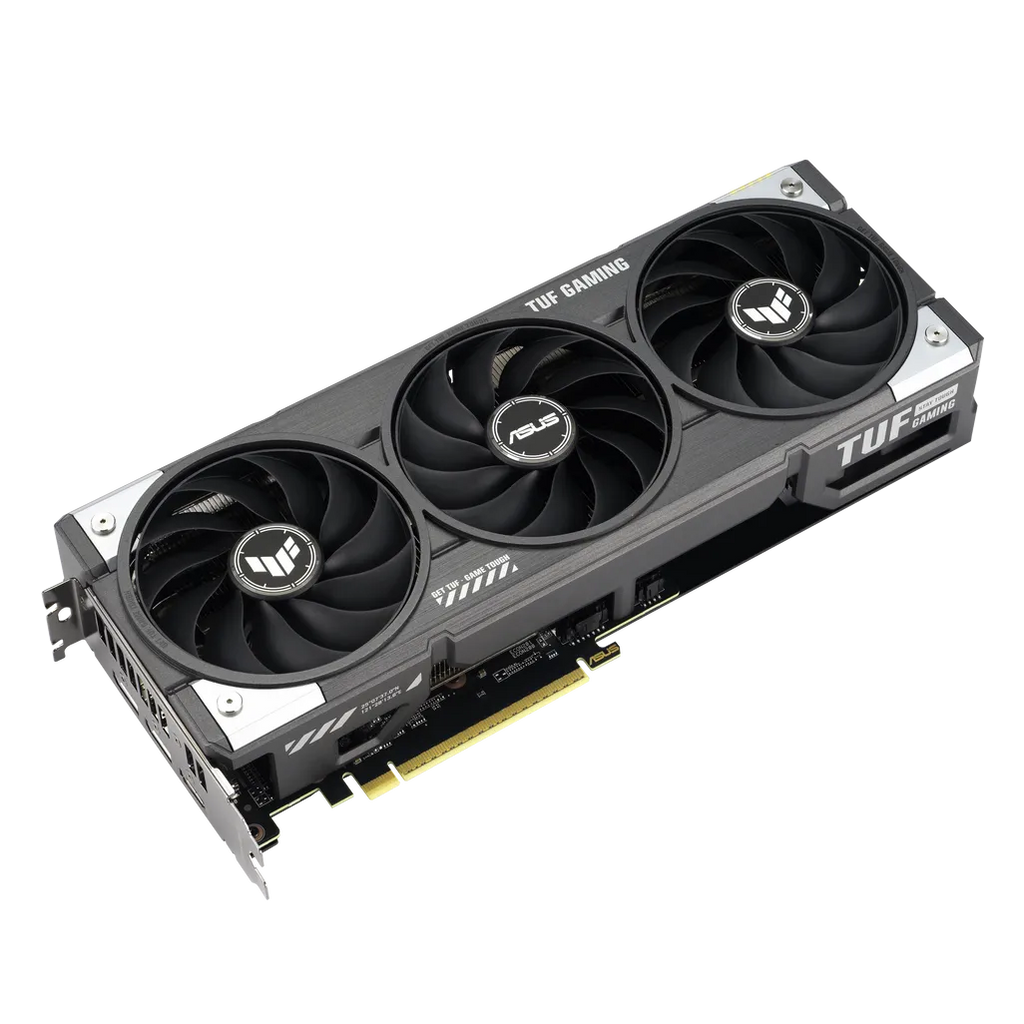

ASUS TUF Gaming TUF RX9060XT 16GB GAMING

The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.

Cooling Mastery

This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.

MaxContact Design

MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

SPECIFICATIONS

• Graphic Engine: AMD Radeon RX 9060 XT
• Memory Speed: 20Gbps

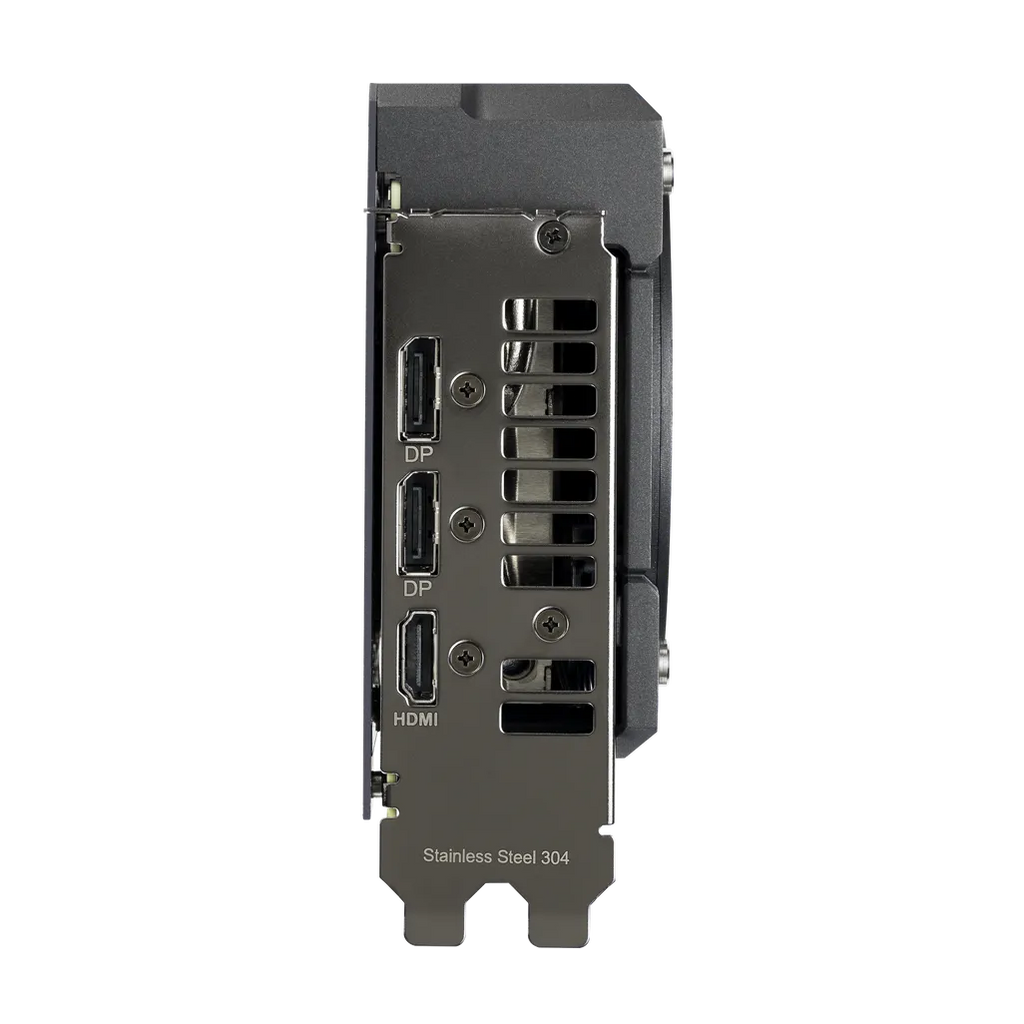

• Interface
  • 1x HDMI 2.1b
  • 2x DisplayPort 2.1a
  • HDCP Support: Yes (2.3)
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL 4.6
• Video Memory: 16GB GDDR6
• Engine Clock
  • OC mode (GPU Tweak III): up to 3340 MHz (Boost Clock) / up to 2800 MHz (Game Clock)
  • Default mode: up to 3320 MHz (Boost Clock) / up to 2780 MHz (Game Clock)
• Stream Processors: 2048
• Memory Interface: 128-bit
• Digital Max Resolution: 7680 x 4320
• Maximum Display Support: 3
• NVlink / Crossfire Support: No
• AURA SYNC: RGB
• Recommended PSU: 550W
• Power Connectors: 1x 8-pin
• Slot Width: 2.5 Slots
• Product Dimensions: 304 x 126 x 50mm

Graphics processor family: AMD,

Graphics processor: Radeon RX 9060 XT.

Discrete graphics card memory: 16 GB,

Graphics card memory type: GDDR6,

Memory bus: 128 bit.

Maximum resolution: 7680 x 4320 pixels.

OpenGL version: 4.6.

Interface type: PCI Express 5.0.

ooling type: Active,

Number of fans: 3 fan(s),

Illumination colour: Multi
